Series DIS

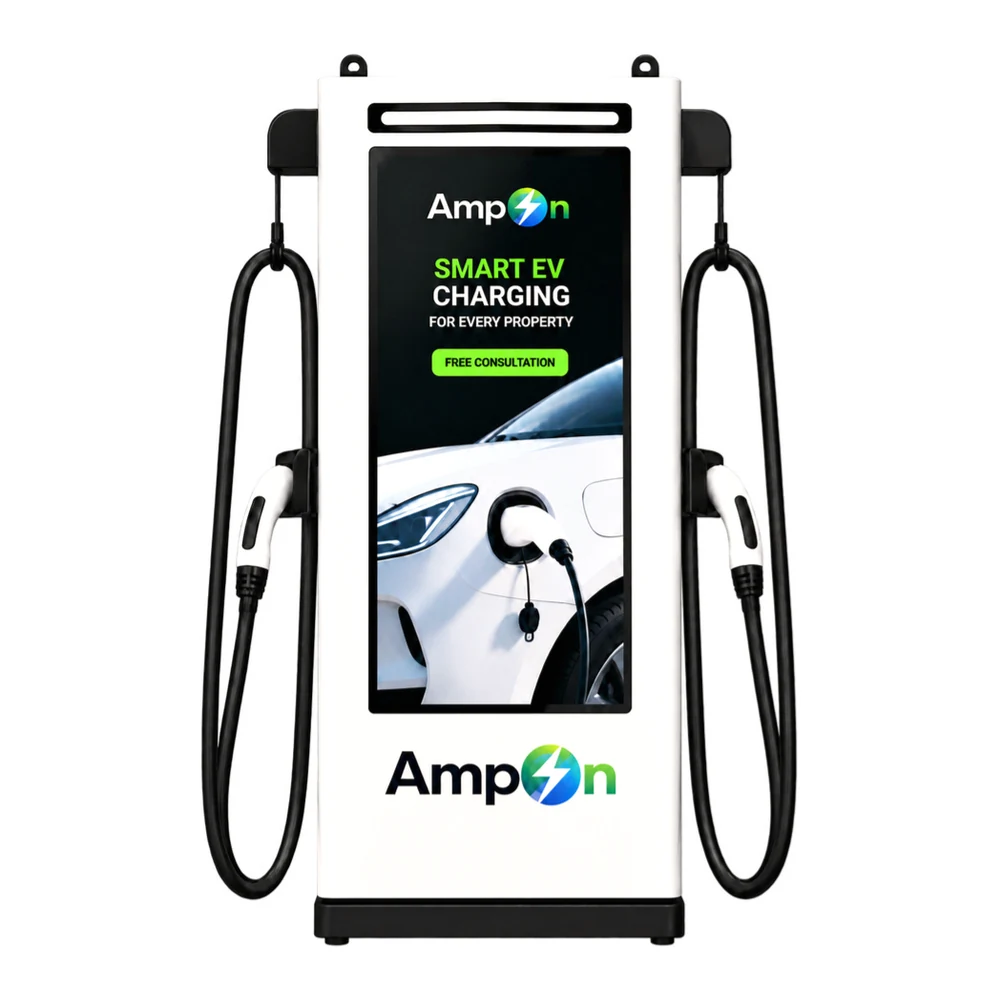

AmpOn Beacon
Digital-display dual-port charger with 55" screen
A full-height charging kiosk built around a 55" outdoor display, turning every charge session into ad space, wayfinding, or brand storytelling. Ideal for destination charging where dwell time has value.
Shopping centersHotels & resortsTransit hubsSponsored charging networks
Flagship catalog number
AMP-DIS-S600-80A
160 A38.4 kW3 years warranty
At a glance
- 55" outdoor-rated LCD display
- Up to 160 A combined output (38.4 kW)
- SAE J1772 Type 1 or NACS, both ports
- NEMA 3R (IP65) / IK10 vandal-resistant
- LAN, Wi-Fi & Bluetooth standard; 3G/4G optional
- OCPP 1.6J, upgradable to OCPP 2.0.1
Certification:ETL / Intertek
Specifications
AMP-DIS-S600-80A · Series DIS
Power
- Input AC rating
- 208–240 Vac
- Frequency
- 60 Hz
- Max. output power
- 11.5 or 19.2 kW per port · up to 38.4 kW combined
Interface & control
- Display
- 55" LCD digital-signage display
- LED status indicator
- Yes
- Restart button
- Yes
- User authentication
- RFID (ISO/IEC 14443 A/B), AmpOn App
Connectivity
- Network
- LAN, Wi-Fi & Bluetooth standard · 3G/4G optional
- Protocol
- OCPP 1.6J · upgradable to OCPP 2.0.1
- Vehicle communication
- ISO 15118 (optional)
Environmental
- Operating temperature
- -22°F to 122°F
- Humidity
- 5–95% RH, non-condensing
- Altitude
- ≤ 6,562 ft (2,000 m), no derating
Mechanical
- Ingress / impact rating
- NEMA 3R (IP65) / IK10
- Cabinet (W × D × H)
- 82.68" × 49.45" × 21.65" (2,100 × 1,256 × 550 mm)
- Weight
- 463 lbs (210 kg)
- Cable & connector
- Type 1 or NACS · 18 ft standard, 25 ft optional
Protection & regulatory
- Multiple protection
- Over/under-voltage, over-current, over-temperature, surge, ground fault, short-circuit, relay-weld, CCID self-test
- Safety
- UL 2594, UL 2231-1/-2
- Charging interface
- SAE J1772 Type 1 / NACS
Configurations
Every orderable configuration of the AmpOn Beacon, by catalog number.
| Catalog number | Configuration | Combined amps | Max. output |
|---|---|---|---|
| AMP-DIS-S600-48A | 48 A × 2 | 96 A | 23 kW |
| AMP-DIS-S600-80A | 80 A × 2Flagship | 160 A | 38.4 kW |
Pricing depends on configuration, quantity and the electrical work at your site, so it is quoted from a site evaluation rather than listed here.
